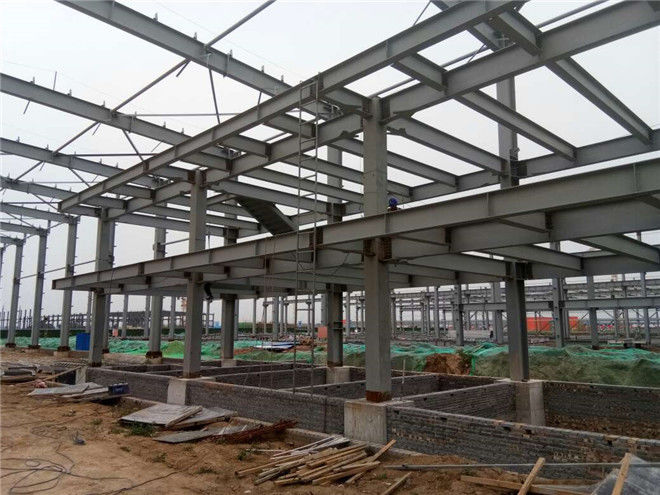

Custom Steel Structure Warehouse Building with H Section Frame

Chi tiết sản phẩm

Điều khoản thanh toán & vận chuyển

Minimum Order Quantity: 100

Giá bán: 45

Delivery Time: 30

Payment Terms: L/C,T/T

Supply Ability: 100000

Nhận được giá tốt nhất

Chi tiết sản phẩm

Mô tả sản phẩm

Chi tiết sản phẩm

Làm nổi bật:
                                                custom steel warehouse building, H section steel frame warehouse, steel structure warehouse with warranty


Mô tả sản phẩm

Expansive Steel Space Frame Warehouse Design

Modular Design Features

14 customizable modules available for flexible configuration

Technical Specifications

Project	Steel Structure Building
Size	Customizable to customer requirements

Main Steel Structure Components

Component	Material Specification
Column	Q235B, Q355B Welded H Section Steel
Beam	Q235B, Q355B Welded H Section Steel

Secondary Steel Structure Components

Purlin	Q235B C and Z Type Steel
Knee Brace	Q235B C and Z Type Steel
Tie Tube	Q235B Circular Steel Pipe
Brace	Q235B Round Bar
Vertical and Horizontal Support	Q235B Angle Steel, Round Bar or Steel Pipe

Roof and Wall System

Component	Material Options
Roof Cladding	Steel Sheet or Sandwich Panel (EPS, PU, Glass Wool, Rock Wool)
Wall Cladding	Steel Sheet or Sandwich Panel (EPS, PU, Glass Wool, Rock Wool)
Door	Sandwich Panel Sliding Door/Rolling Metal Door
Window	Aluminium Alloy Window/PVC Panel Window
